Israeli Army M-48 "Magach 3" tank in 1/35th scale/ Dragon M-48A3



IDF M48-A3 'MAGACH" TANK 1973



 The M-48A3 in IDF service (excerpt from Wikipedia)

    The M48 tank was sold to the Israel Defense Forces (IDF) by West Germany and later the United States, during the 1960s and 1970s. Several dozen Jordanian M48 tanks, captured intact during the 1967 Six Day War, were also commissioned into service, adding to Israel's 150 already in service at that time. During the war, the Israeli tanks served in their original (American) configuration.
Following the 1967 war, several modifications were made to improve the tank to M48A3 level, resulting with the Magach 3. These modifications included replacement of the original 90 mm cannon gun with the British 105 mm L7, lowering the command turret's profile, upgraded communication suite, and replacement of the flammable and weak gasoline engine with a 750 hp diesel one.
When the Yom Kippur War broke out, Israel had a total of 540 M48A3 (with 105mm gun) and M60A1 tanks.  During the war, the tanks suffered heavy losses. The location of flammable hydraulic fluid at the front of the turret was discovered to be a severe vulnerability. After the war Israel had only about 200 M48A3 and M60A1 tanks, after a large number of Israeli tanks were destroyed or terminally hit during the war, mostly in the Sinai front against entrenched Egyptian infantry armed with AT-3 Sagger anti tank missiles.  The war's losses were replaced with new M48A5 (Magach 5) and M60 (Magach 6) during the 1970s.






 THE MODEL


The Dragon M-48A3 was a long awaited subject from a model company that initially (25 years ago) started producing Soviet vehicles to fill a much desired void.  Scale modelers rejoiced because now all the Soviet types could be added to their armor collections  Unfortunately, production costs usually dictate manufacturer's choice of which subject to invest and WW II Germany was always a safe bet.  Years pass, and Dragon manufactured nearly every variety (and sub-variety) of German armored vehicle from that conflict.  So, imagine everyone's surprise when Dragon announced the release of an M-48. Finally they listened to the scale modeling community and produced one as popular as the M-48 "Patton" tank... My model is converted to an Israeli "Magach-3" from the 1973 Yom Kippur war using new parts supplied in the resin kit by DEF of Korea.  Here is a photo of that conversion kit:

Here are a few photos from during the build and of course the completed model. The model was painted with Testors Modelmaster "Israeli Sinai Sand-Grey" and lightened with pastel powders.


















COMMISSIONS

Yes, I will build commissioned scale models for select clients.  I can be reached by email: seahors1@gate.net












Israeli Army M-38A1C Recoiless Rifle Jeep in 1/35th scale: AFV Club


   The Israeli Army received the M-38A1C in the early 1960s and employed these light, 2 ton vehicles in their armored reconnaissance brigades for forward recon missions.  These vehicles were able to cross terrain that other types could not and the value of their fast strike capability far exceeded the size of the vehicle. Information obtained from forays deep into enemy controlled areas gave armored force commanders the ability to outmaneuver the enemy.  During the 1967 Six Day War, these vehicles saw service on all three fronts: Sinai, Golan Heights, and the West Bank.  They were replaced by other, modern types (M-151, M-113 and Humvee) in the 1970s.  Those units were then equipped with the US made TOW missile.





THE MODEL

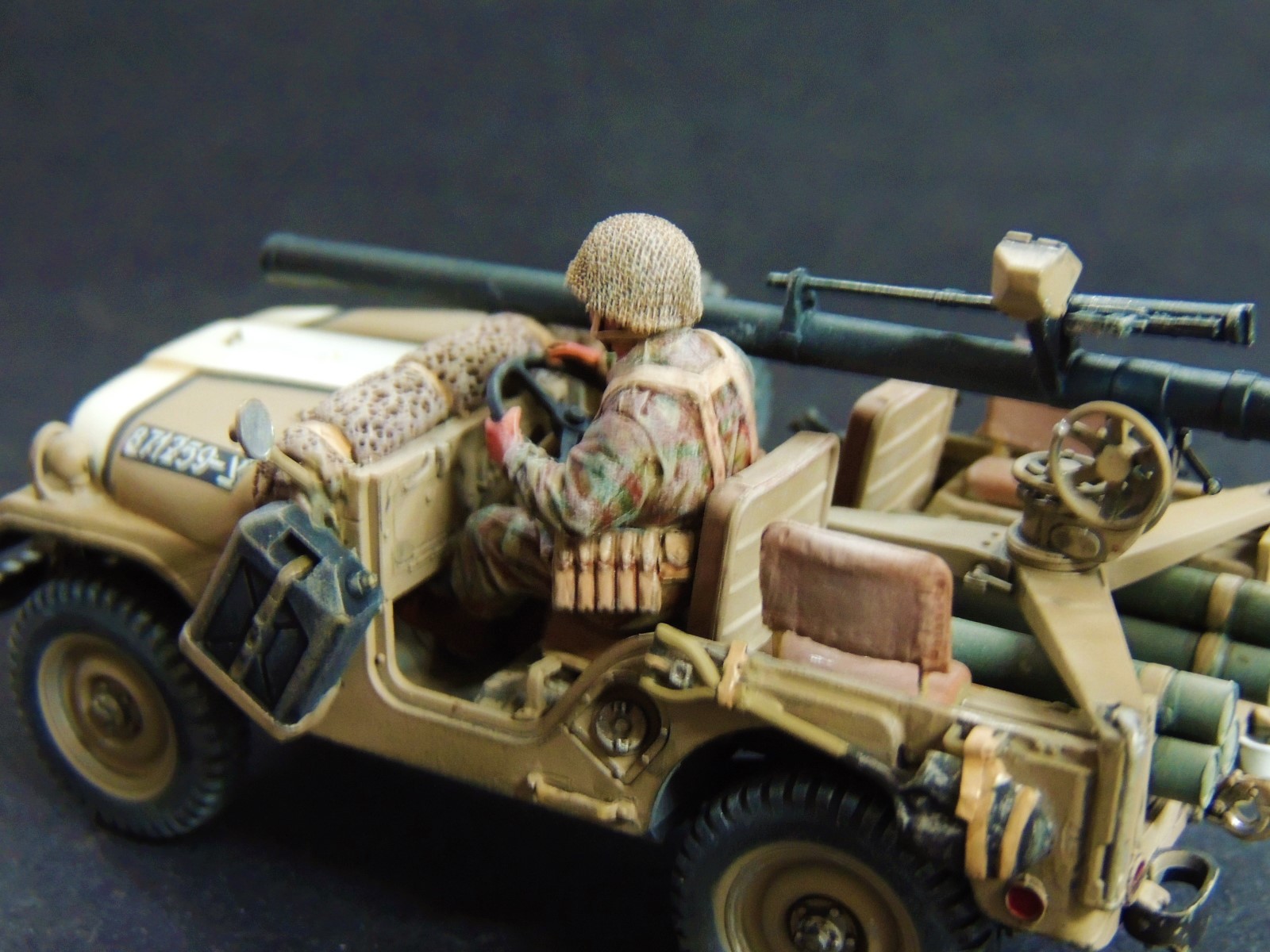

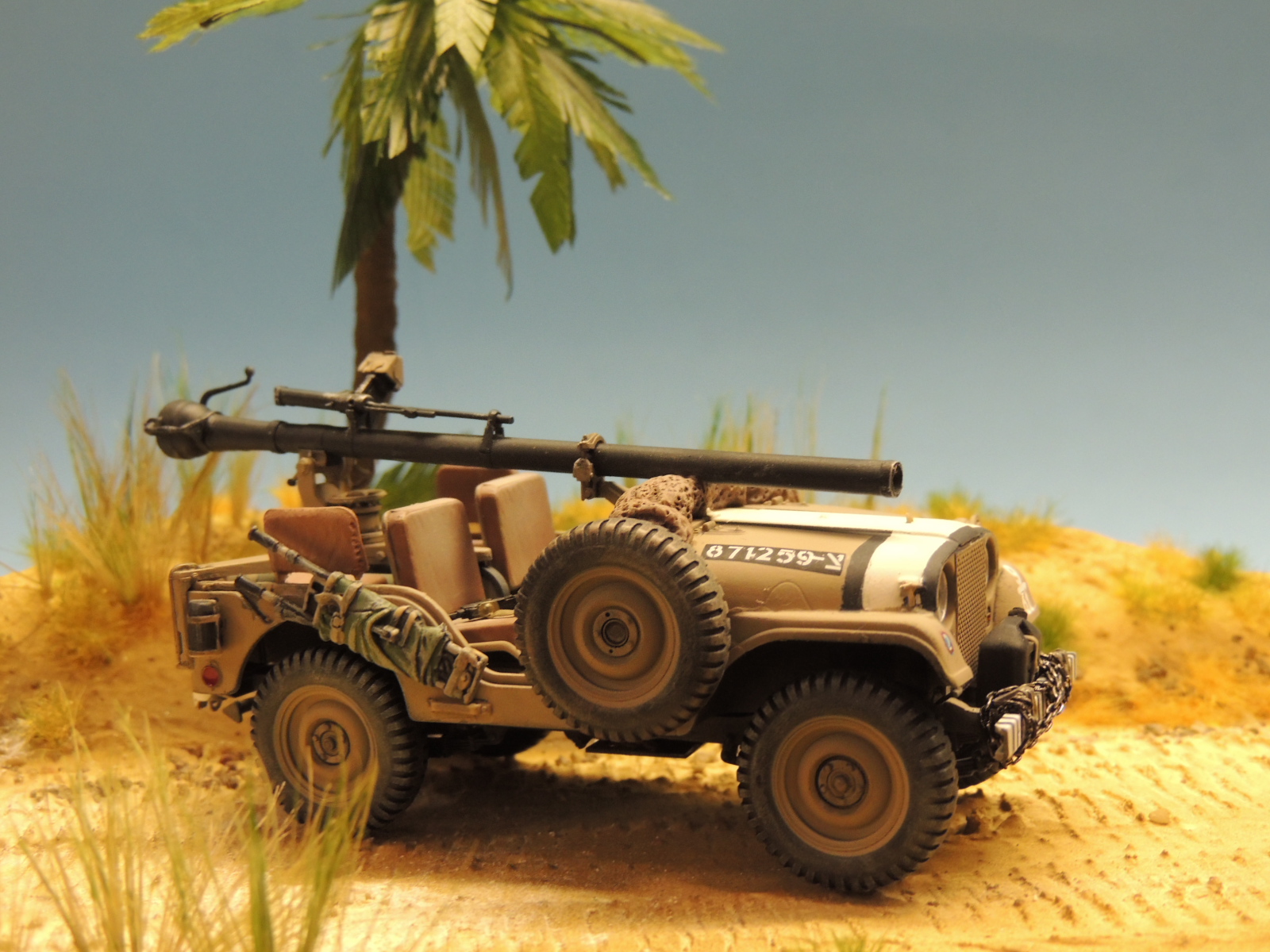

This is the old Skybow kit resurrected under the AFV club brand.  It is an easy kit to build and takes higher detailing very well.  The conversion to an Israeli vehicle involved removal of the forward windshield, placing a screen over the front engine grill, a large tarpaulin (used for camouflage by these units in the field) draped over the hood, extra water cans and back seats on either side for the gun crew..  The driver figure was from the "Masterbox" British 1/4 ton truck set and converted to appear as an Israeli Paratrooper from the 67 war.  Israeli vehicles are always fun to load up with extra stowage and this one may still get some extras....As for the paint, I use Testors Modelmaster "Afrika Dunkelgrau" for my Six Day War vehicles.  A good match for that time period.  The White with Black  outlines, air recognition stripes are standard for IDF vehicles from that conflict.  Some vehicles still carried these markings in the 1973 Yom Kippur war.
